Get immersed.
From multiplayer showdowns to epic adventures, get closer to your games than ever before with Intel’s innovative architecture.
8 Efficient-cores
8 on Efficient-cores
Designed for the needs of today’s gamers.
The latest version of performance hybrid architecture will push your gameplay beyond performance, giving you the power to do it all.
cores
Unleashes the capability to optimise the latest games and gaming software.
cores
Provides multitasking power to work, play, and most importantly game together.
Keep your gaming free of interruptions by making sure background tasks don't slow you down.3
Personalise your PC.
13th Gen Intel® Core™ desktop processors deliver the broad platform support that allows you to optimise your PC using the latest gaming technologies.
Support for both DDR4 and DDR5 gives you control over your memory configuration.4
Support for Thunderbolt™ 4 technology offers a simple and fast way to connect peripherals.
Push past the limit with overclocking.
Increase processing power by fine-tuning your system to run your processor at higher settings2 to improve frame rates and achieve smoother gameplay. Enhanced overclocking for both sets of cores allows you to customise your performance.
2. Unlocked features are present with select chipsets and processor combinations. Altering clock frequency or voltage may void any product warranties and reduce stability, security, performance, and life of the processor and other components. Check with system and component manufacturers for details.
3. 600 series compatibility available on select motherboards only. Not all features present on all motherboards. Check with your motherboard manufacturer.
4. Maximum memory speeds are associated with 1 DIMM per Channel (1DPC) configurations. Additional DIMM loading on any channel may impact maximum memory speed. Up to DDR5-5600 MT/s 1DPC UDIMM 1Rx8, 1Rx16 and DDR5-5200 1Rx8, 1Rx16, 2Rx8 on select SKUs. Maximum memory capacity is achievable with 2DPC configurations
5. Intel® Thread Director is designed into 13th Gen Intel® Core™ processors and helps supporting operating systems to intelligently channel workloads to the right core. No user action required. See Intel.com for details.
No product or component can be absolutely secure. Your costs and results may vary.
Intel technologies may require enabled hardware, software or services, some of which may not be available on all systems. Please check with the manufacturer for full system specifications.
ELDEN RING™ & © Bandai Namco Entertainment Inc. / © 2022 FromSoftware, Inc.
© Intel Corporation. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Other names and brands may be claimed as the property of others.
Specifications
Essentials
Product Collection

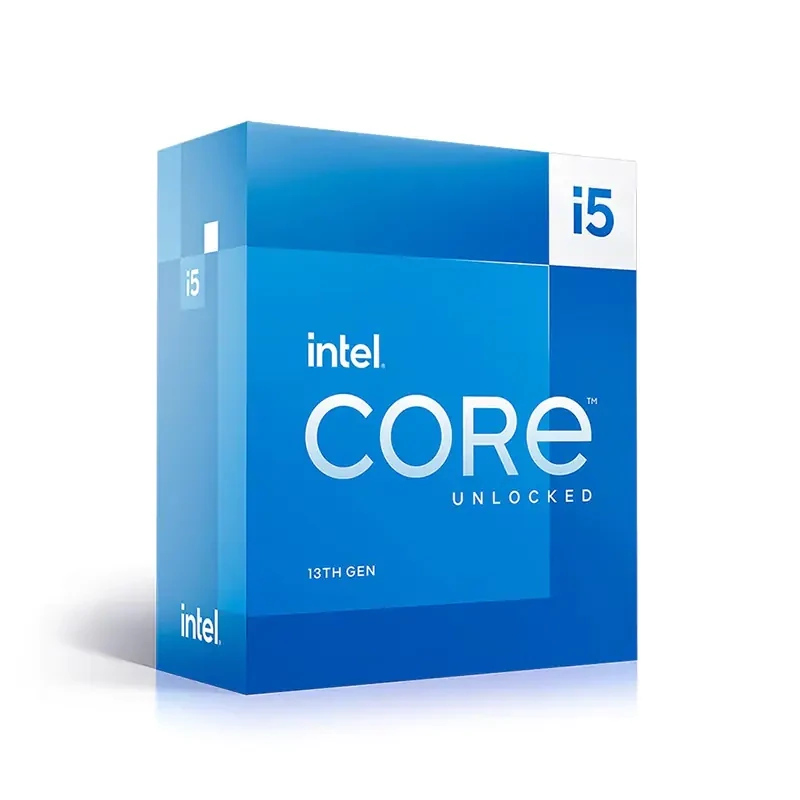

13th Generation Intel® Core™ i5 Processors
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-13600K
Lithography
Intel 7
CPU Specifications
Total Cores
14
# of Performance-cores
6
# of Efficient-cores
8
Total Threads
20
Max Turbo Frequency
5.10 GHz
Performance-core Max Turbo Frequency
5.10 GHz
Efficient-core Max Turbo Frequency
3.90 GHz
Performance-core Base Frequency
3.50 GHz
Efficient-core Base Frequency
2.60 GHz
Cache
24 MB Intel® Smart Cache
Total L2 Cache
20 MB
Processor Base Power
125 W
Maximum Turbo Power
181 W
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported*
Yes
Processor Graphics
Processor Graphics*
Intel® UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.50 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)*
4096 x 2160 @ 60Hz
Max Resolution (DP)*
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)*
5120 x 3200 @ 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported*
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations*
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Max CPU Configuration
1
T JUNCTION
100°C
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
Yes
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0*
No
Intel® Turbo Boost Technology*
2.0
Intel® Hyper-Threading Technology*
Yes
Intel® 64*
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes
Security & Reliability
Intel® Standard Manageability (ISM)*
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® OS Guard
Yes
Intel® Trusted Execution Technology*
Yes
Execute Disable Bit*
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel® Stable IT Platform Program (SIPP)
Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)*
Yes
Intel® Virtualization Technology (VT-x)*
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)*
Yes
Intel® VT-x with Extended Page Tables (EPT)*
Yes
All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cycle, specifications, and product descriptions at any time, without notice. The information herein is provided "as-is" and Intel does not make any representations or warranties whatsoever regarding accuracy of the information, nor on the product features, availability, functionality, or compatibility of the products listed. Please contact system vendor for more information on specific products or systems.
* This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration.
